レッドハットでコンサルティングしているフェンです。 今回は、swagger-uiをFuseアプリケーションに埋め込み、APIドキュメント(WebAPI仕様書)を簡単に公開するサンプルと設定内容を紹介します。

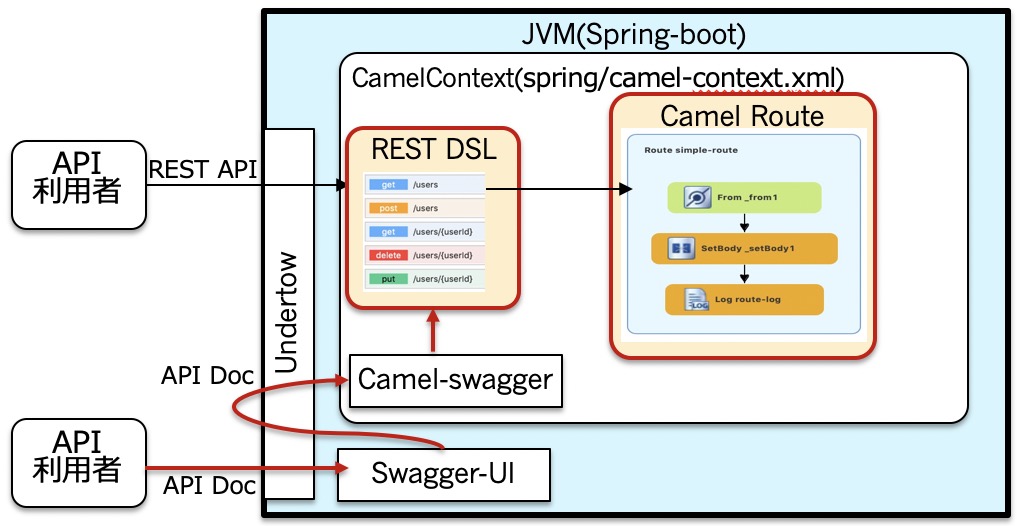

このサンプルでは、Swagger UI を使用して、RES DSL で定義されたAPIのAPIドキュメント(WebAPI仕様書)を表示します。
ソースコードはGithub(https://github.com/jian-feng/camel-restdsl-swagger-demo.git)からダウンロードできます。
Swagger UIとCamel REST DSL
- Swagger とは、RESTful APIのドキュメントや、サーバ、クライアントコード、エディタ、またそれらを扱うための仕様などを提供するフレームワークであります。
- Swagger UI とは、Swagger Specificationから動的にドキュメントを生成するツールです。
- RES DSL とは、CamelルートでREST APIを記述するDSLです。
因みに、REST DSLでREST APIを開発する方法は、これらの記事をご参照ください。
- Creating a REST API in Apache Camel
- Get started with REST services with Apache Camel
- 29行でメール送信サービスを作る - Apache Camel
今回は、REST DSL開発ではなく、主にSwagger UI連携するための設定 を説明させてください。
サンプルの実行方法
Mavenコマンドで実行します。
mvn spring-boot:run
そして、ブラウザでサンプルアプリで公開されるSwagger UIを表示できます。
http://localhost:8080/webjars/swagger-ui/3.22.0/index.html?url=/camel/api-docs
サンプルの設定内容
Step 0. Swagger UIの組み込み
pom.xml
にSwaggerライブラリを追加します。
<!-- Swagger support for restdsl --> <dependency> <groupId>org.apache.camel</groupId> <artifactId>camel-swagger-java-starter</artifactId> </dependency> <dependency> <groupId>org.webjars</groupId> <artifactId>swagger-ui</artifactId> <version>${swagger.ui.version}</version> </dependency>
Step 1. REST Configuration
Camel提供のSwagger設定項目を使用して、API全体の概要情報をRest configuration(camel-context.xml
の<restConfiguration>
)に記述します。
例:
<restConfiguration apiComponent="swagger" apiContextPath="/api-docs" component="servlet" contextPath="/camel" enableCORS="true" host="0.0.0.0" port="8080"> <dataFormatProperty key="prettyPrint" value="true"/> <!-- 設定可能なapiProperty一覧は、Swaggerドキュメントを参照 --> <!-- http://swagger.io/specification/#infoObject --> <apiProperty key="api.title" value="My REST API"/> <apiProperty key="api.version" value="1.0.0"/> <apiProperty key="api.description" value="APIドキュメントのデモ"/> <apiProperty key="api.contact.name" value="フェン ジン"/> <apiProperty key="api.contact.email" value="jfeng@redhat.com"/> </restConfiguration>
apiComponent
,apiContextPath
enableCORS
は、Swagger有効化ため最低限の設定。他に設定可能な内容は、こちらを参照してください。<apiProperty>
は、API情報(infoObject)の設定。他に設定可能な内容は、こちらを参照してください。
Step 2. REST Context
Camel提供のSwagger設定項目を使用して、個々のAPIの詳細(例、要求/応答のデータタイプなど)をRest context(camel-context.xml
の<rest>
)に記述します。
Rest contextを別XMLで記述し、Camel-context.xmlにてincludeすることもできます。
例:
<rest bindingMode="off" id="rest-1" path="/restsvc"> <description>sample rest service</description> <get id="get-1" uri="/ping"> <description>This is ping service</description> <responseMessage code="200" message="要求情報が正常に処理され、HelloメッセージがJSON形式で返す" responseModel="org.mycompany.ResponseInfo"/> <responseMessage code="500" message="要求情報に問題がないが、サーバ側で処理異常のため、ErrorメッセージがJSON形式で返す" responseModel="org.mycompany.ErrorInfo"/> <route> <to uri="direct:hello"/> </route> </get> </rest>
<description>
,<responseMessage>
は、Swagger有効化ため最低限の設定。他に設定可能な内容は、こちらを参照してください。
Step 3. DataModel
Swagger Coreのモデルプロパティ定義(@ApiModelProperty)アノテーションを使って、個々のDataModelに補足情報を追加します。
要求・応答情報のデータモデルやリソースモデル内で定義している各プロパティに @ApiModelProperty
を用いて、プロパティの説明や入力例、プロパティの表示順序などを設定できます。以下は主要なメソッドを説明します。
メソッド 説明
value プロパティ名を指定します。
required プロパティが必須かどうかを指定します。 (default: false)
example プロパティの入力例を指定します。
position プロパティの表示順序を指定します。 (default: 0)
例: src/main/java/org/mycompany/ResponseInfo.java
import io.swagger.annotations.ApiModelProperty; public class ResponseInfo { @ApiModelProperty(value = "Hello msg from camel", required = true, example = "sample message") private String msg; public String getMsg() { return msg; } public void setMsg(String msg) { this.msg = msg; } }
終わりに
CamelのREST DSLで開発されるAPIはcamel-swaggerを介して、APIドキュメントを公開する方法を理解できたでしょうか。APIの開発時に、ソースコード上でコメントだけでなく、公開可能なAPI情報も意識して埋め込めば簡単に情報共有できます。このため、開発標準の一環として取り入れてください。
